Sandvik Coromant

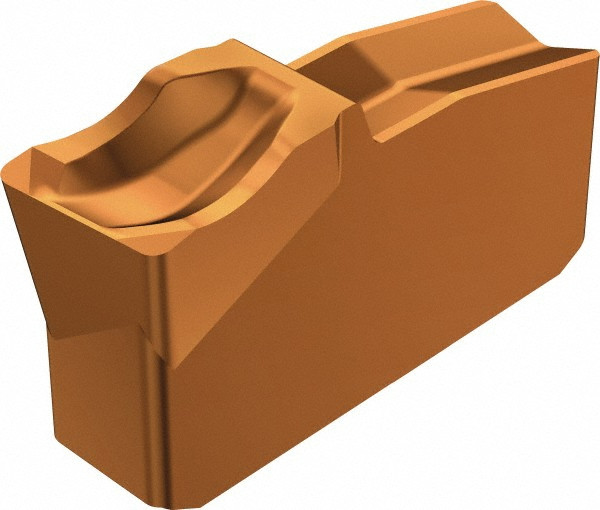

Cut-Off Insert: R151.2-400 05-4E 1125, Carbide, 4.00 mm (0.1575″) Cutting Width
5 deg Lead Angle, Right Hand, Series T-Max Q-Cut
| Insert Style | R151.2 |
| Insert Size Code | 40 |
| Insert Material | Carbide |
| Manufacturer Grade | 1125 |
| Cutting Width (Decimal Inch) | 0.1575 |
| Cutting Width (mm) | 4.00 |
| Insert Holding Method | Clamp |
| Lead Angle Direction | Right Hand |
| Insert Hand | Right Hand |
| Lead Angle | 5 |
| Relief Angle | 7.00 |
| Corner Radius (Decimal Inch) | 0.0118 |
| Chipbreaker | 4E |
| Series | T-Max Q-Cut |
| Coating Process | PVD |
| Manufacturers Catalog Number | R151.2-400 05-4E 1125 |
| Insert Seat Size | 40 |
| Full Radius | No |
| Overall Width (Decimal Inch - 4 Decimals) | 0.1575 |
| Overall Width (mm) | 4.00 |
| Coating/Finish | TiAlN |
| UNSPSC Code | 23242105 |
| Country of Origin | UNITED STATES |
